Gallery of lift Tables 1

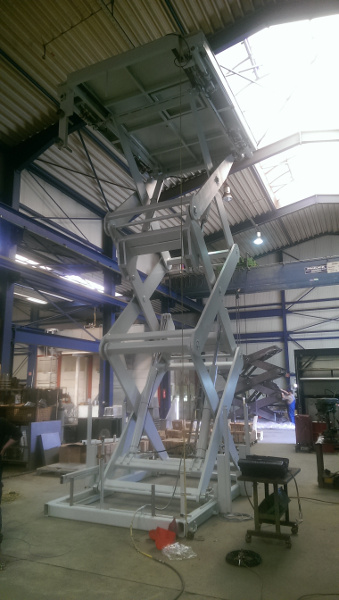

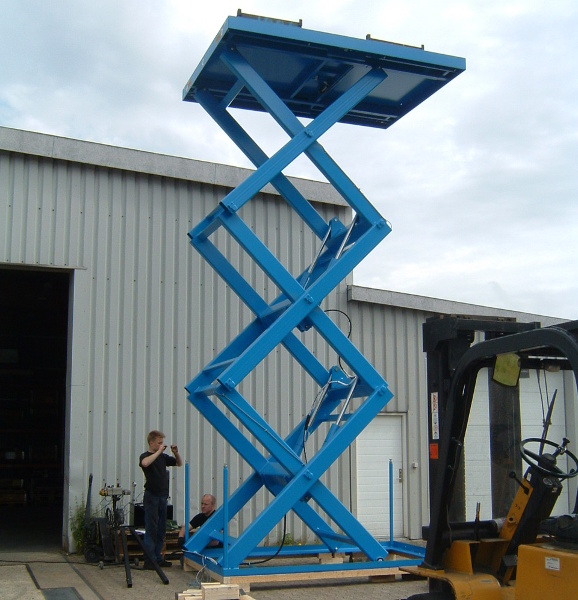

Triple Vertical Scissor Lift

3 tonne capacity theatre back of stage lift with 5m stroke and 3m.x 2m lifting platform

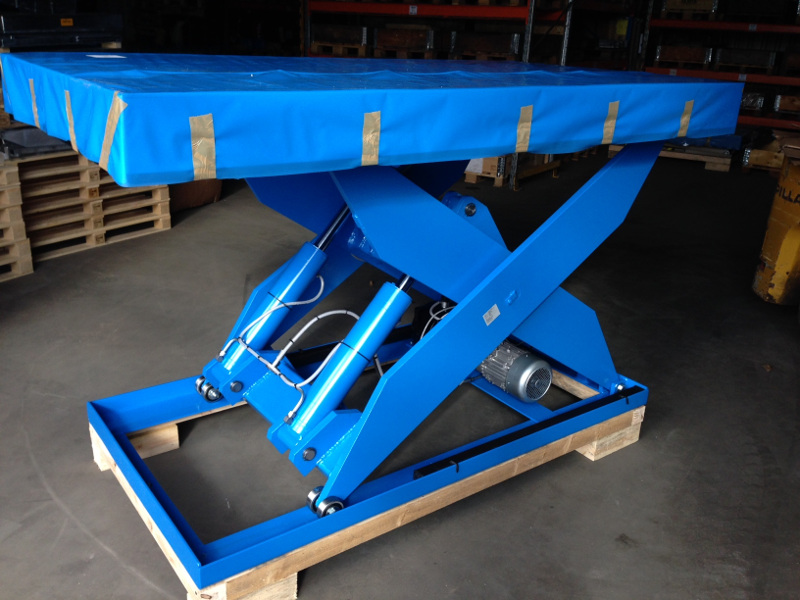

Single Scissor lift

4 tonne lift table with 10 tonne roll over load capacity and auto rising roll of stops to help retain loads

Triple Vertical Scissor Lift

5 tonne capacity 4m x 3m scissor lift unit with 6m of stroke for use in cold store

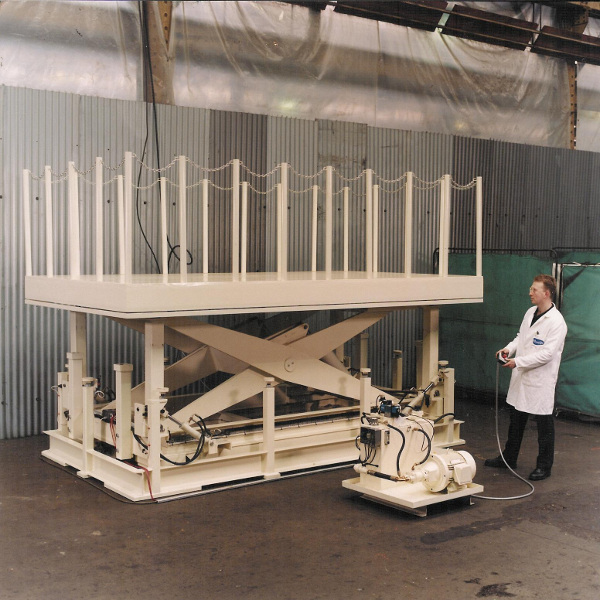

Single Platform Lift

5 tonne platform lift in nuclear industry with powered rising support legs to permit load transfers between different fixed levels

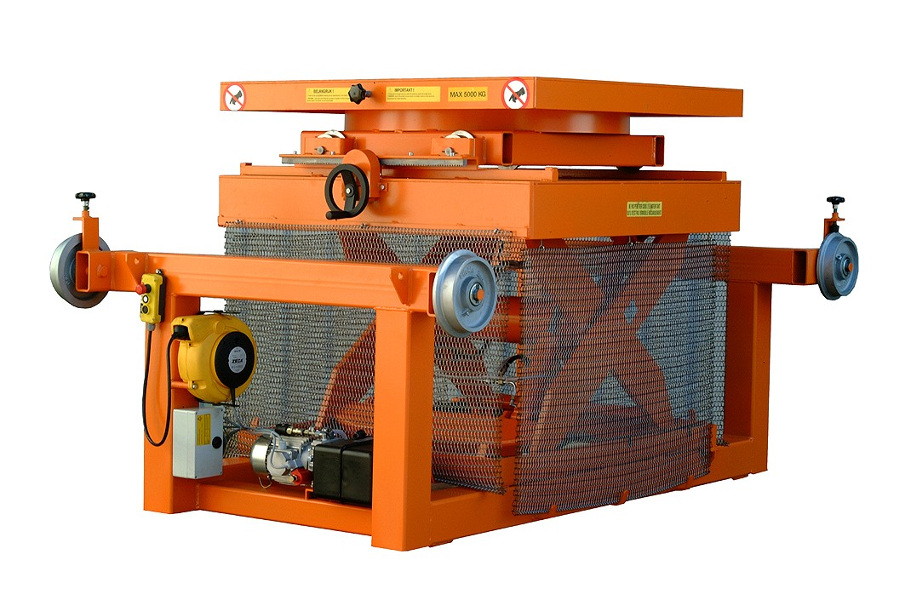

Scissor Platform with Turntable

5 tonne scissor platform with turntable, multi-axis adjustment for accurate load re-positioning of bulky loads

Lift and Tilt Table

8 tonne capacity 4m x 4m lift and tilt table later fitted with powered turntable for automotive display

Bespoke Lifting Platform

13 tonne bespoke lifting platform with mechanical load handling device

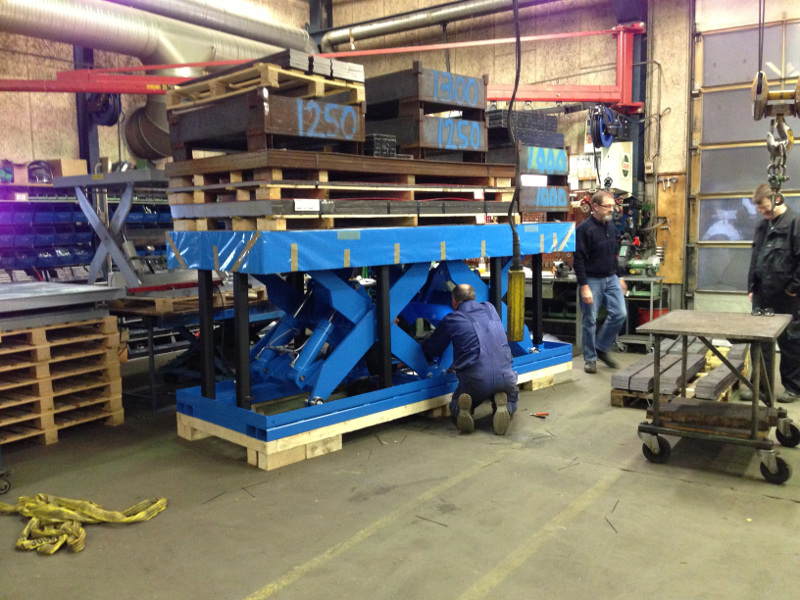

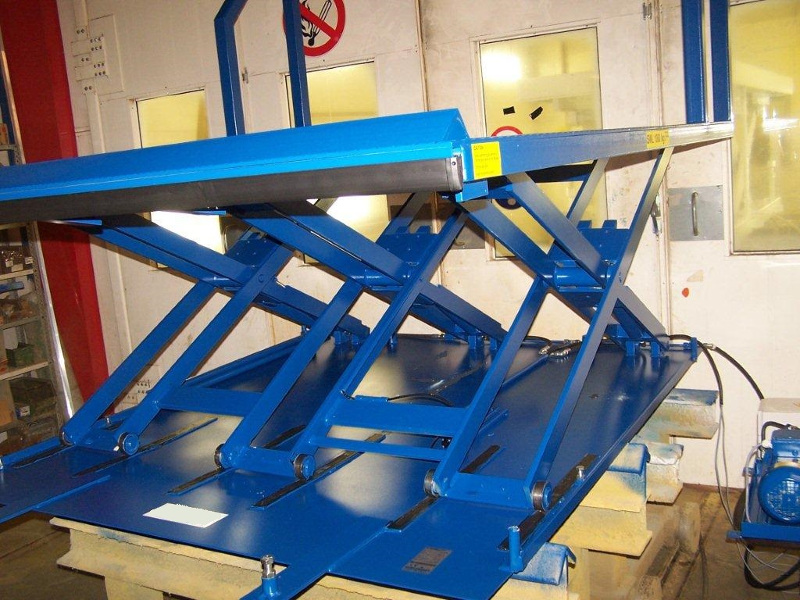

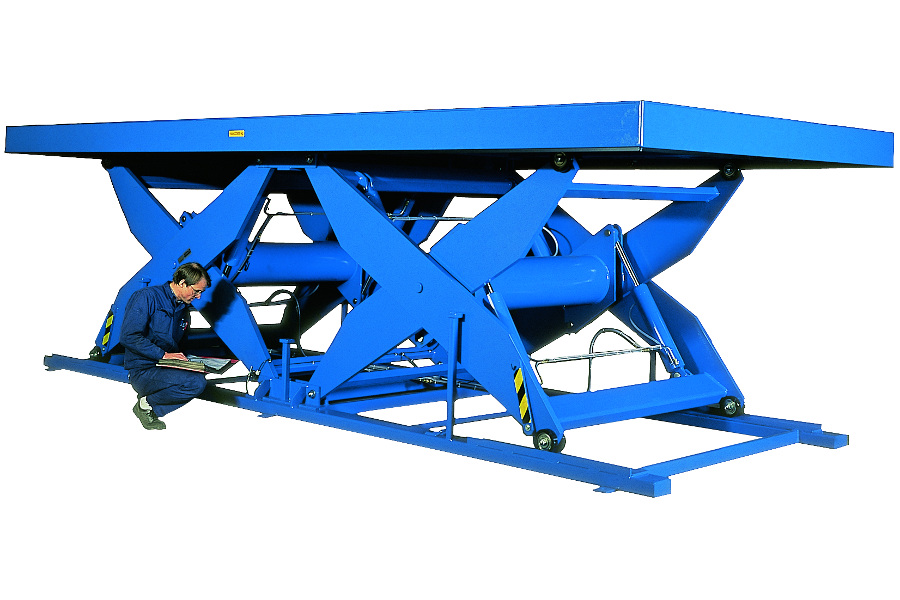

Double horizontal armset

20 tonnes swl scissor lft table lifting platform for vehicles, sheet metal

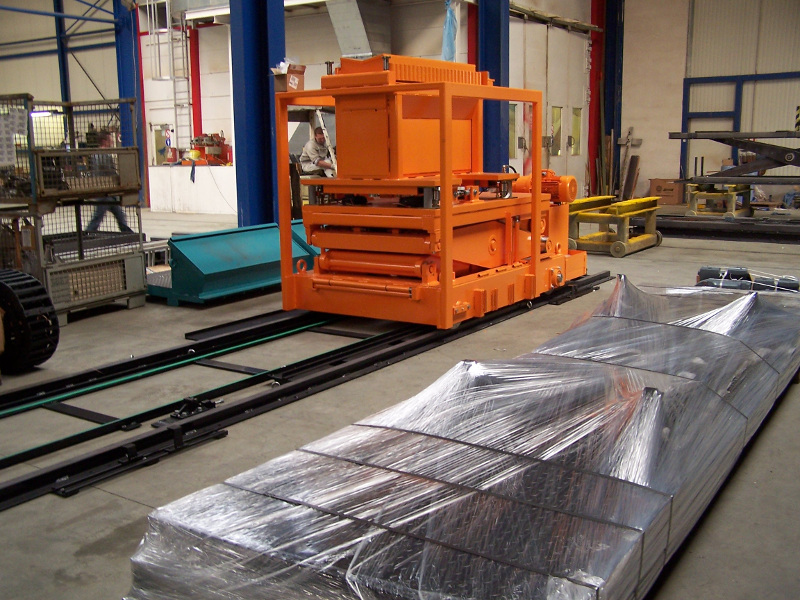

Heavy Capacity Lift Table

25 tonne capacity scissor lift table in a steel coil car on rails

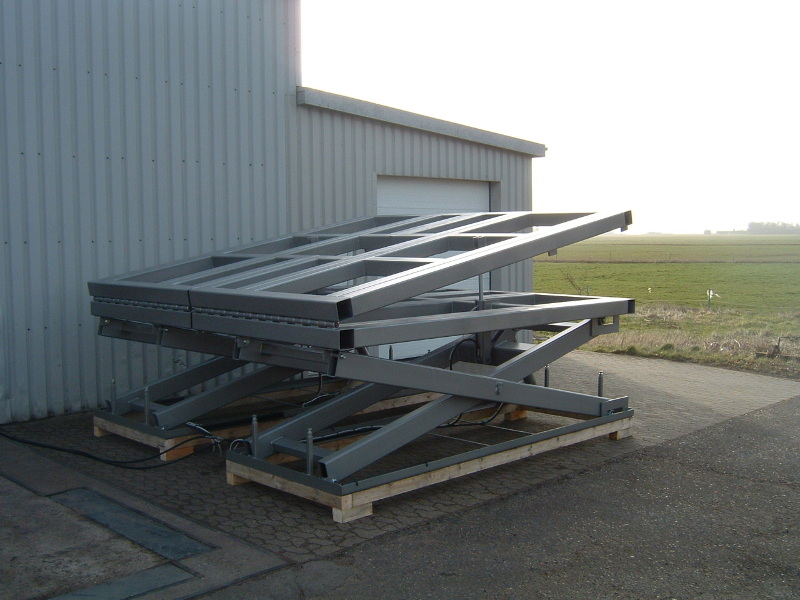

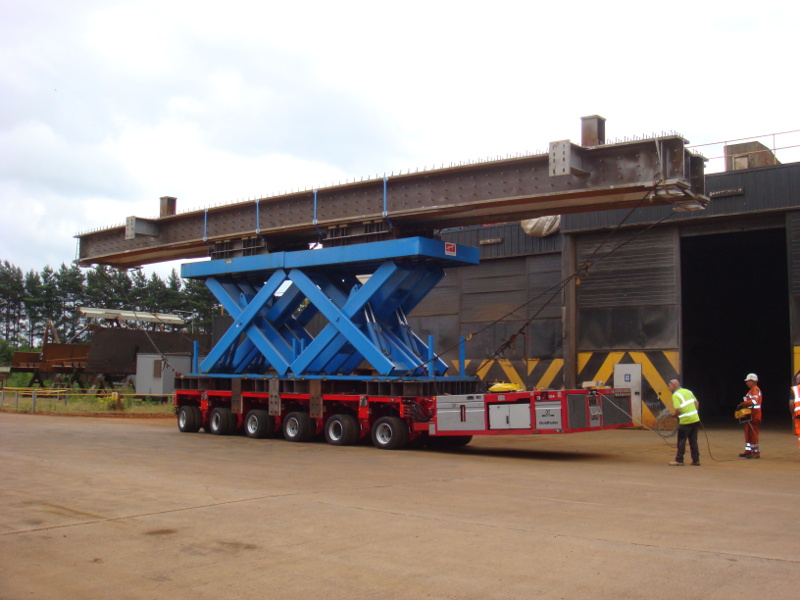

Double Horizontal Lift Table

60 tonnes of lifting capacity scissor lifts with bridge beams

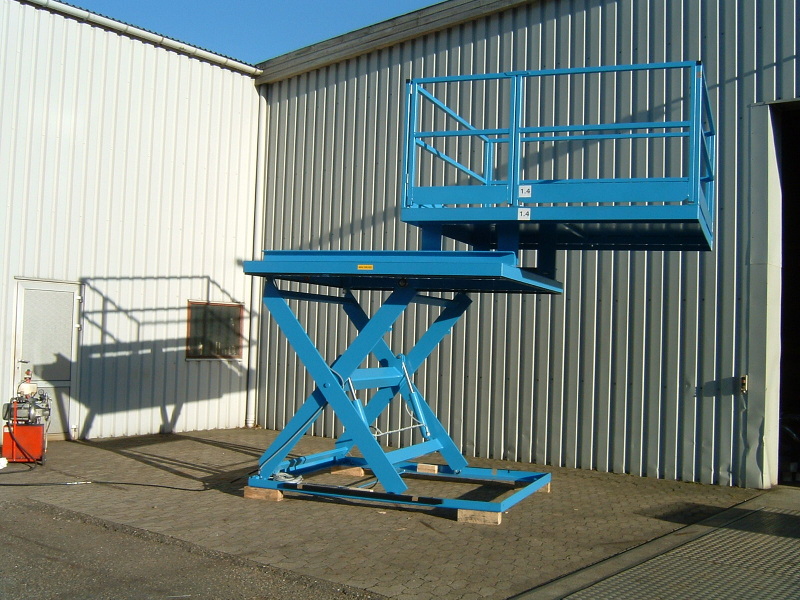

Adjustable Height Scissor Lift Table

Adjustable height scissor lift table with extending working platforms for servicing railway tunnels

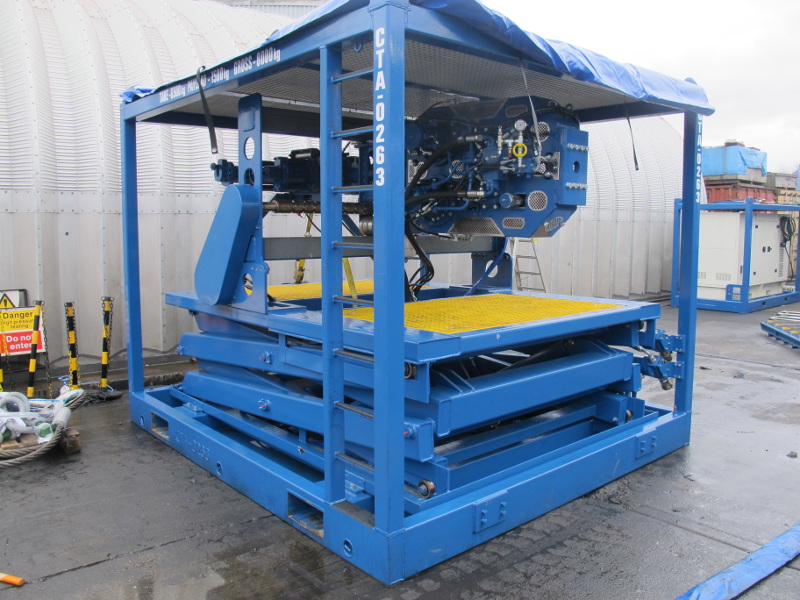

Off Shore Platform

ATEX certified scissor lift table for use on off-shore platform in explosive atmosphere

Low Closed Scissor Lift

Bespoke low closed scissor lift with auto rising roll off stop

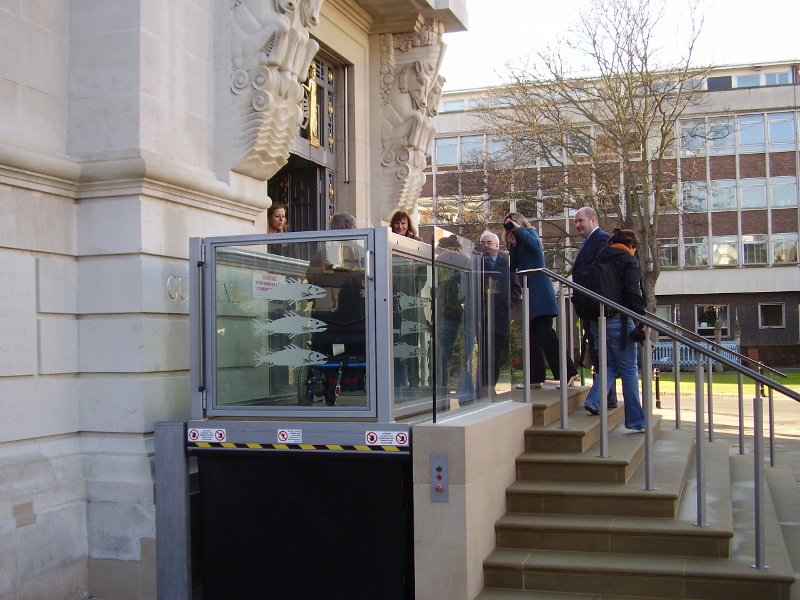

Mobility Impaired Scissor Lift

Bespoke outdoor scissor lift table for mobility impaired and wheelchair users

Double Horizontal Scissor Lift

Double horizontal scissor lift table with shot bolts and rising legs for mechanical platform support

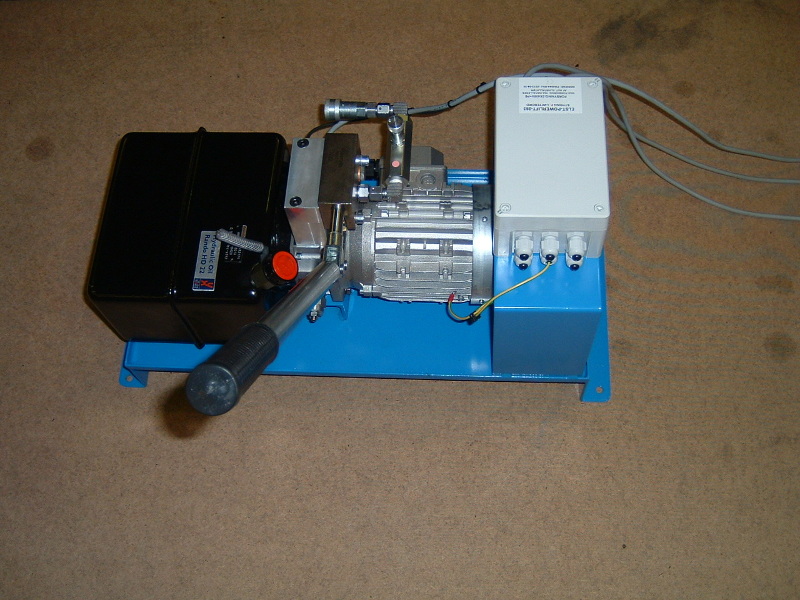

2Electro-hydraulic Power Pack

Electro-hydraulic power pack in a drip tray with a quick release self sealing coupling and manual hand pump. Fitted remotely from scissor lifting platform

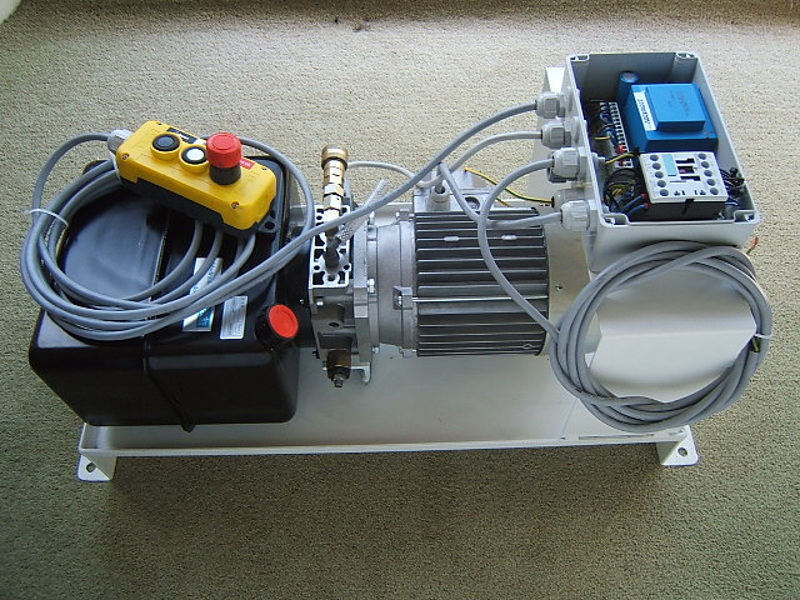

2Electro-hydraulic Power Pack

Electro-hydraulic power pack in drip tray showing hold to run deadman style push button control station and open control panel

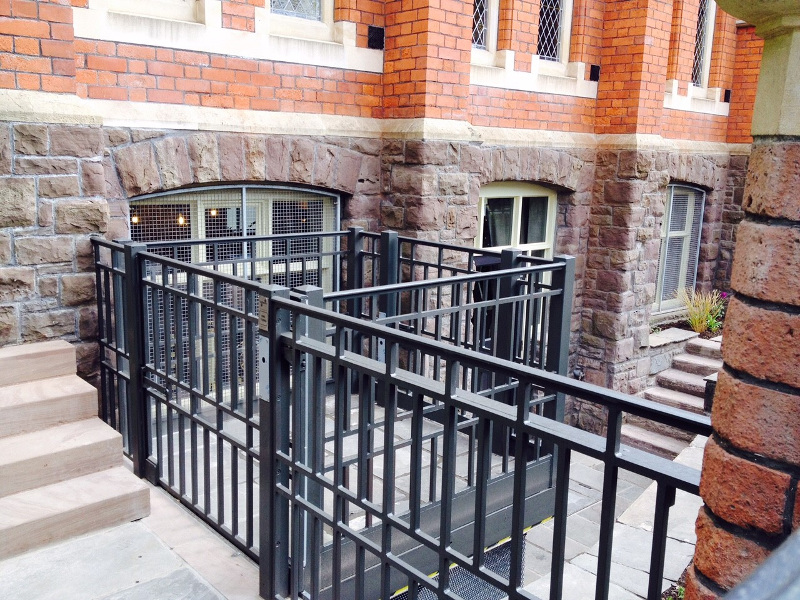

Access Platform

External access platform with inset stone pavers including architectural handrails and gates

Hydraulic Support Legs

Hydraulically operated adjustable rising support legs for scissor lift table

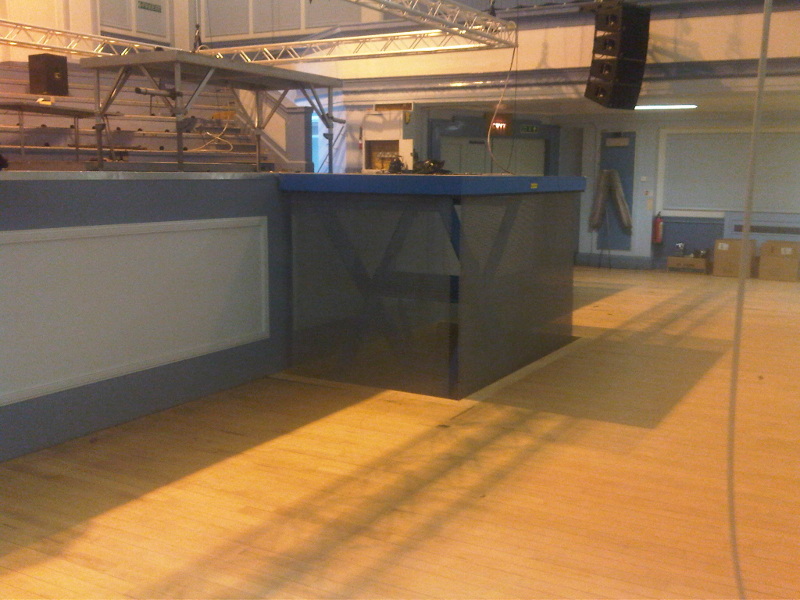

Platform with Mesh Sides

Lifting platform set into Grand Hall floor in front of stage

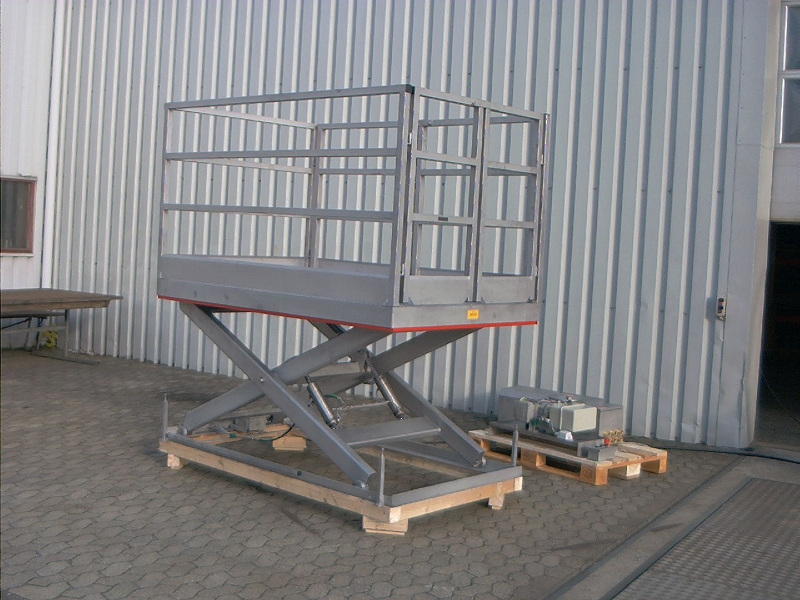

Goal Post Barrier

Lifting platform with goal post barrier and handrails

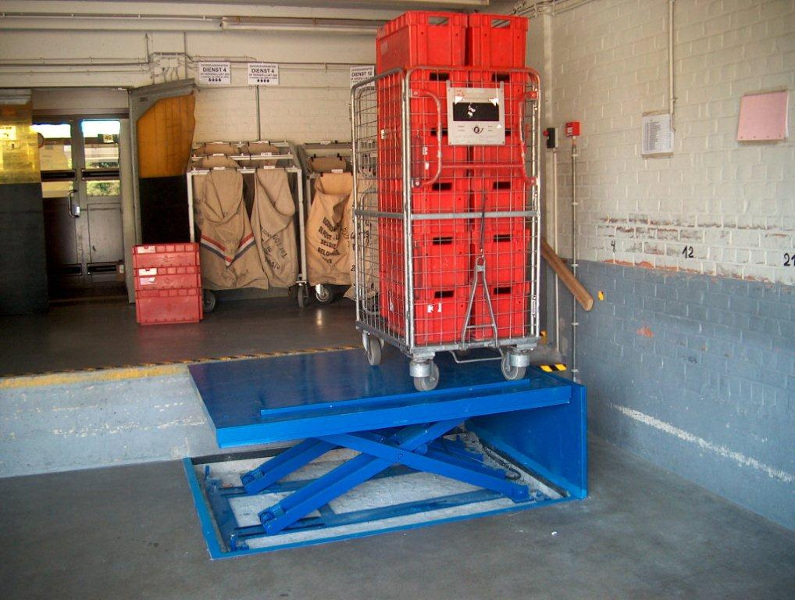

Low Closed LIft

Low closed lift in loading bay for handling roll cages of mail

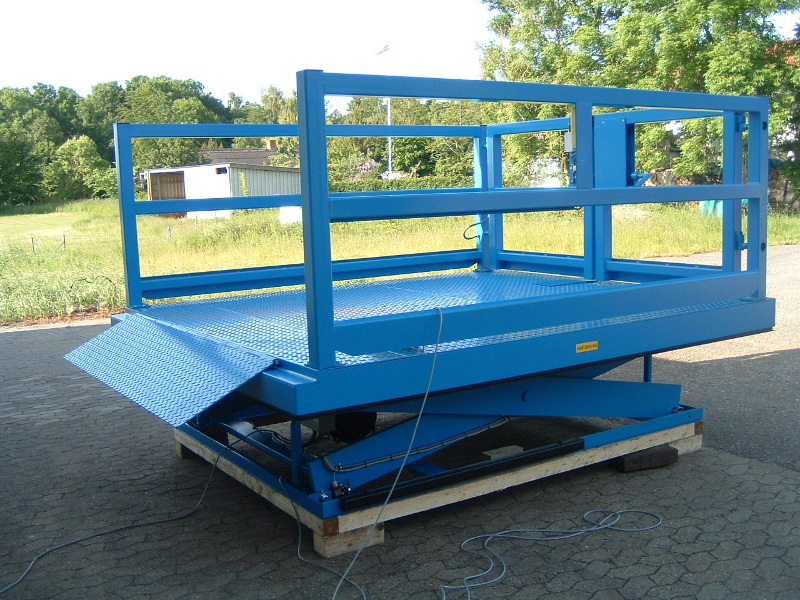

Loading Bay

Loading bay scissor lift table with inset bridge plate and heavy duty outward opening bi-parting gates

Low Closed Scissor Lift

Low closed scissor lifting platform for industry

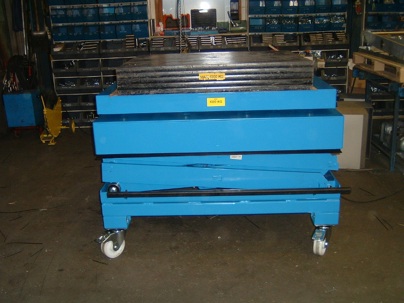

Mobile Scissor Lift Table

Mobile scissor lift table with floating deck for easy horizontal load positioning in all axies

Off Shore Scissor Lift

Off-shore portable scissor lift table for industry

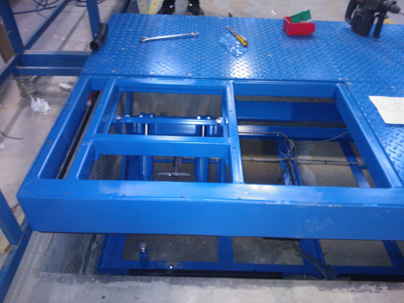

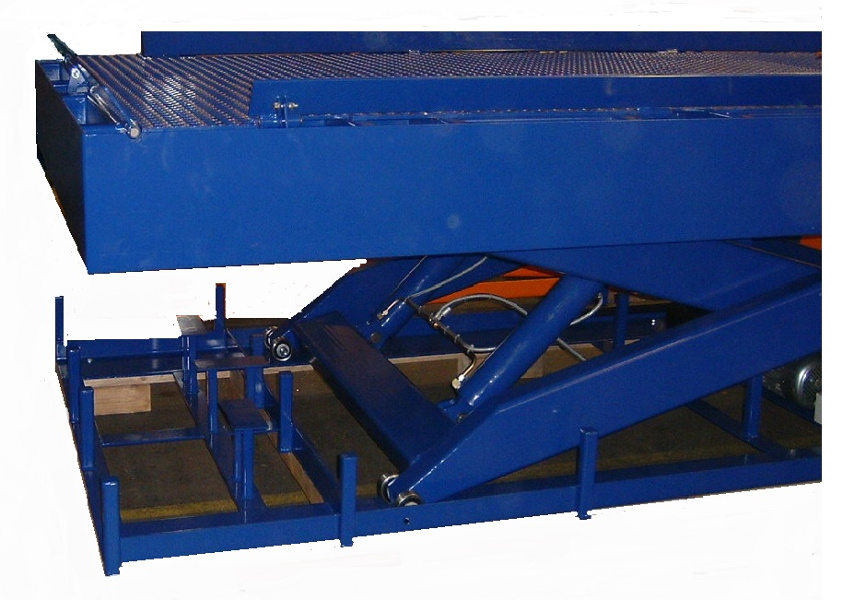

Pit Mounted Scissor Lift

Pit mounted scissor lift table with removable deck plate on substantial sub-frame

Platform Support Legs

Double hosrizontal scissor lift showing platform support legs

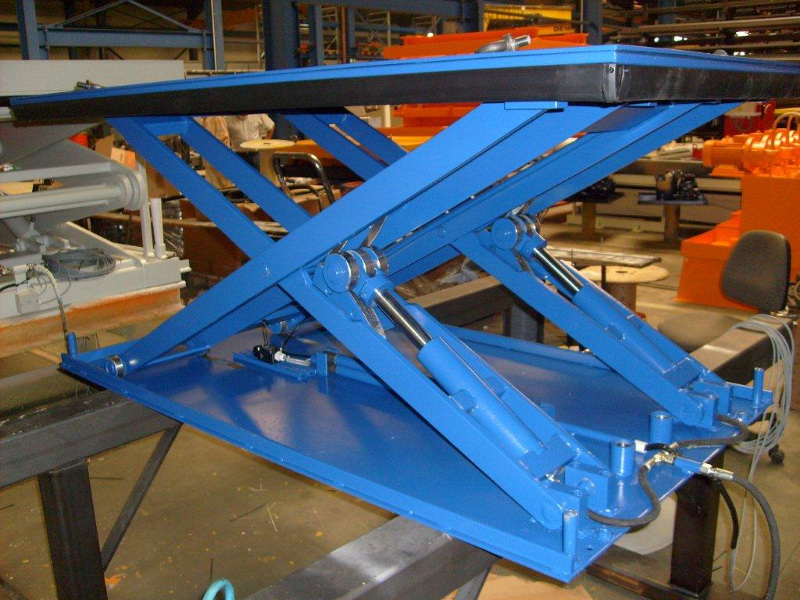

Power-Lift

Power-Lift scissor lifting platform with profiled solid steel arms and double arm roller bearings

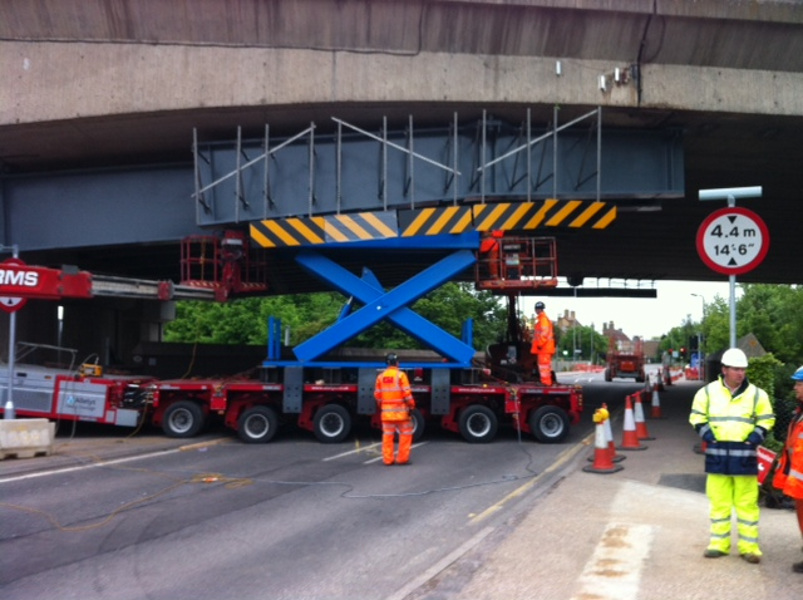

Single Scissor Lift

Power lift scissor lifts being used to strengthen road and rail bridges over highways

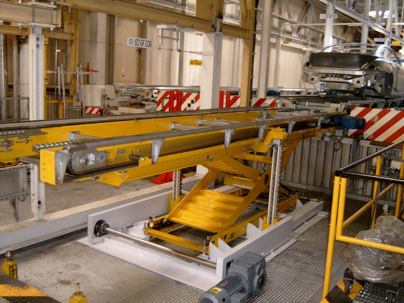

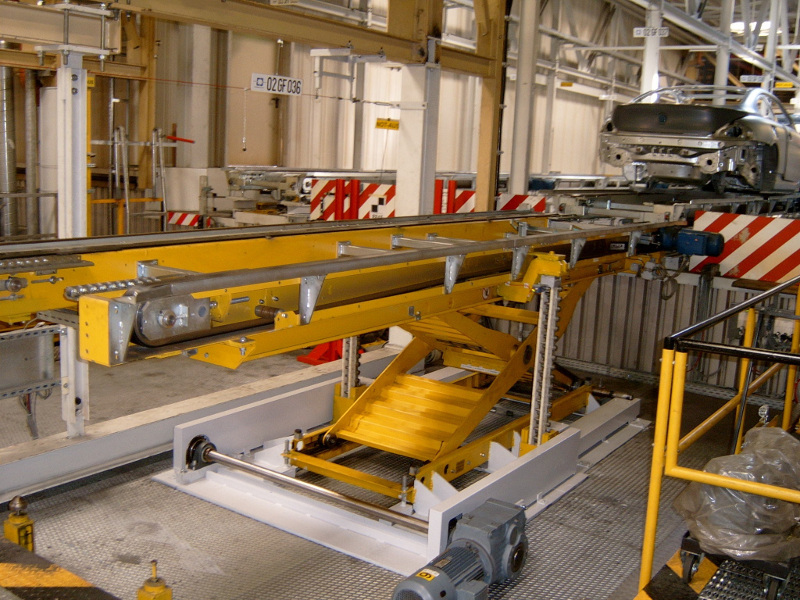

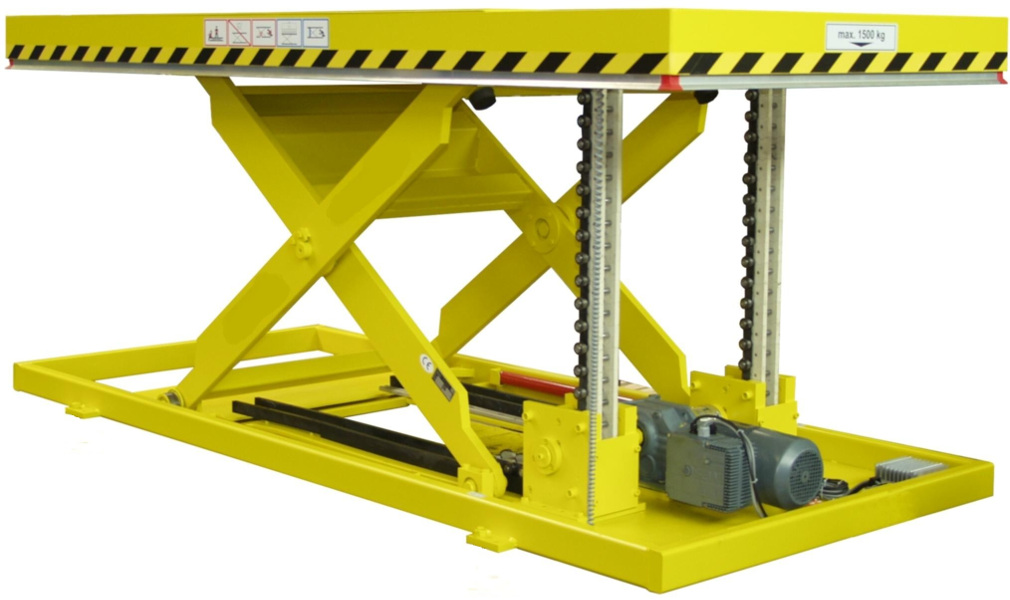

Heavy Duty Push Chain

Push chain scissor lift for heavy duty operation in automotive industry. Avoids use of hydraulic fluids

Push Chain Scissor Lift

Push chain scissor lift table for very high frequency use and where hydraulics not required

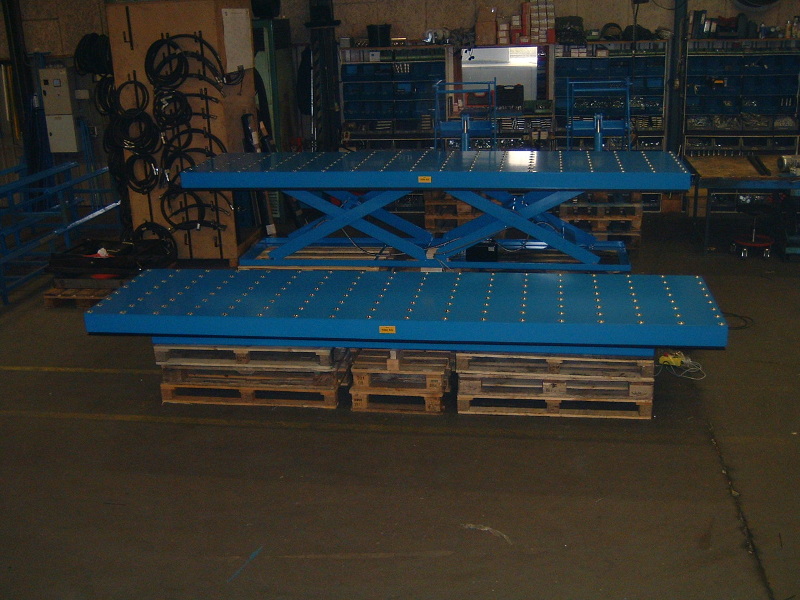

Ball Transfer Units

Scissor lifting platforms with ball transfer units tables

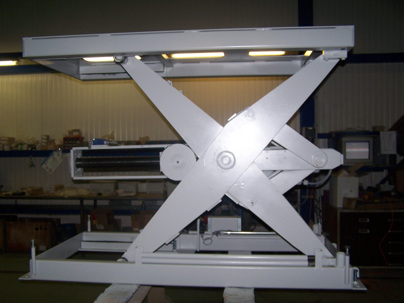

Screw Jack Scissor Lift

Scissor lift powered by screw jack when hydraulics not permitted

Trapezoidal Thread Screw

Scissor lift table driven by trapezoidal thread screw drive

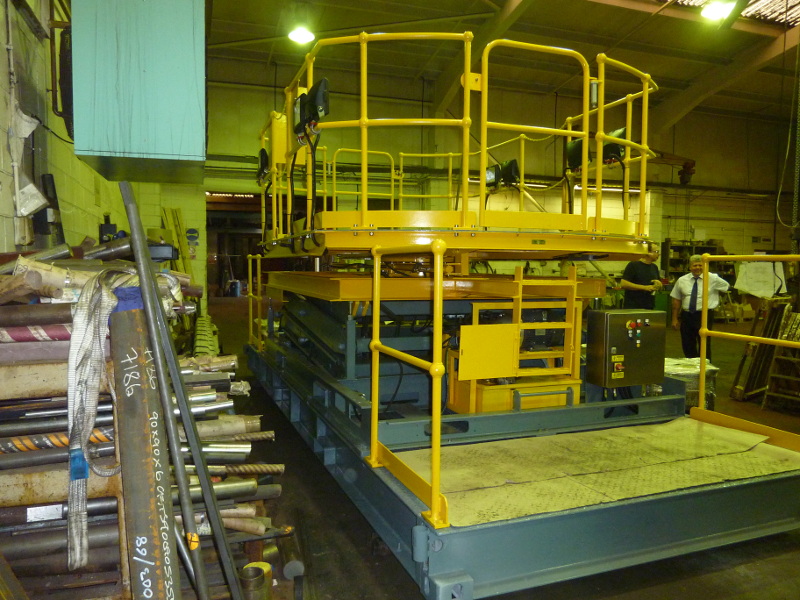

Rotating Working Platform

Scissor lift table with rotating working platform used on Channel Tunnel maintenance train
